Insulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin

Brand Name : JT-RESIN

Model Number : JT8225

Certification : SGS，CE,UL

Place of Origin : China

MOQ : 25KG

Price : $3/kg

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200Ton/week

Delivery Time : 5 days

Packaging Details : 1200kgs/pail

system : indoor

Ratio : 100/100/300

Industry : Electrical Insulator

standard system : High TG

Name : Epoxy Electrical Insulation System

Process : apg

TG : 105-120

Abrasion Resistance : High

Application : Electrical

Chemical Resistance : High

Corrosion Resistance : High

Curing Temperature : Low

Curing Time : Short

Dielectric Strength : High

Flexibility : High

Impact Strength : High

Material : Epoxy Resin

Thermal Conductivity : Low

Type : Insulating

Viscosity : High

Water Absorption : Low

Contact Now

Electrical Insulation Epoxy Resin Manufacturer for Indoor 18KV LBS with APG Process

Proportion:

JT 8225A Epoxy Resin 100 pbw

JT 8225B Epoxy Hardener 80 pbw

D40 Flexibilizer Agent 0-20pbw

Silica Filler 270-360 pbw
Liquid, Latent, Silica flour filled, hot-curing cast resin system. Specially formulated for convenient in processing with excellent impregnating performance.

Insulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin

Applications:

For medium and high voltage indoor transformer,electrical insulators, such as switches and electrical parts, etc

Processing methods:

Conventional vacuum self gravity casting

Product data(Guideline values) *

JT 8068-1 A Liquid and Solvent free modified epoxy resin

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] .................................................................. 1,500-3,000

Epoxy value, equiv/g [ISO 3001] .............................................................................0.45-0.51

Density @ 25℃ , g/cm3 [ISO 1675] ........................................................................1.13--1.15

Vapor pressure @20°C, pa (knudsen) ...........................................................................<0.01

@60°C, pa(knudsen) ..............................................................................<0.5

Storage life @ 25℃ (sealed container), month ……………………………………………………………..12

Remark:In order to prevent the absorption of moisture,please keep epoxy resin in sealed container and storage under normal temperature (about 20 to 25℃).

JT 8068-1 B Modified liquid Epoxy hardener

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] ............................................................................50-80

Vapour Pressure @ 20℃, mbar( Knudsen)....................................................................Ca.0.5

@ 60℃,mbar(Knudsen) .....................................................................Ca.10

Density @ 25℃ , g/cm3 [ISO 1675] .........................................................................1.19-1.22

Storage life @ 25℃ (sealed container), month …………………………………………………………….12

Remark:It may be crystallized when stored at low temperature place. After heating to 60℃, crystal can

be eliminated; JT8068-1B contains accelerator. Prolonged storage at high embient temperatures will result in an undesirable increase in its viscosity and impairs the reactivity of casting resin system.

Process viscosity:

Insulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin

Application device:

Insulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin

Application area:

Insulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin

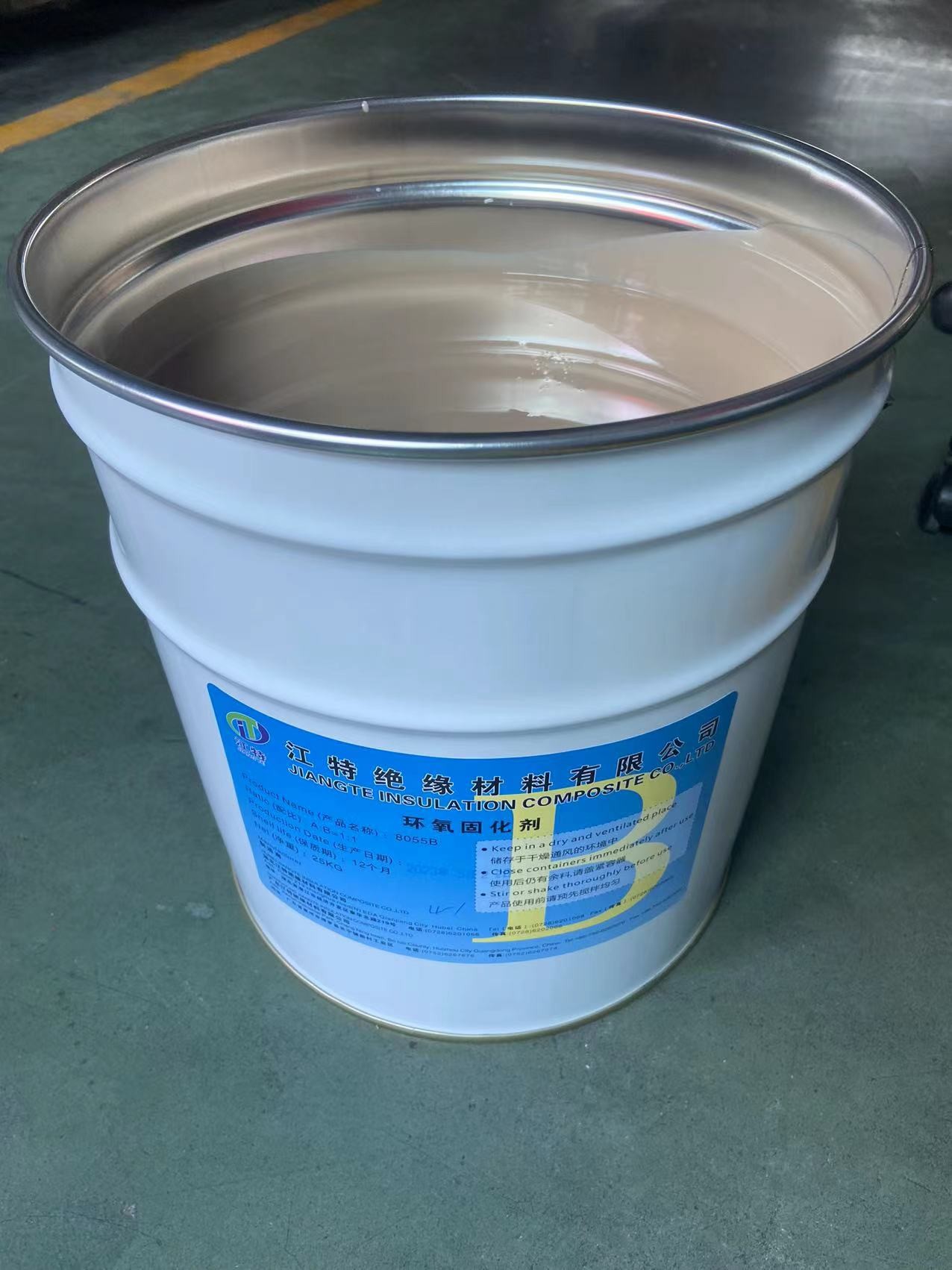

My Warehouse:

Insulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin

FQA:

1 What’s the Pre-filled?
　 Pre-filled is the resin or hardener has been filled with silica sands before delivering to you.
2 Is Pre-filled resin cheaper than Pure resin?
　 Generally it is. However, you should consider the final cost. If you can find qualified silica sands in you local market, the pure resin is better choice. Silica sands are very cheap, sea freight cost is high. With same quantity of resin in a shipment, you can get more final mixed resin with local silica sands.
3 Why JiangTe resin doesn’t offer Flexibilizer and Accelerator?
　 We’ve added them into resin/hardener already before delivering to you. So you can use our materials easily.
4 Should I tell you our process when purchasing?
　 Yes, our materials have two kinds on most of items: Vacuum Casting and Auto Pressure Gelation (APG).
5 Do you have one material which is suitable for both CT PT and bushings insulators?
　 No, the requirements of CT PT and bushings insulators on electrical characters are different. We’ll help you find the suitable one.
6 We’re using Huntsman epoxy resin, can I use JiangTe resin?
　 Yes, ours are equivalent to Huntsman. Please tell the number of Huntsman you’re using, we’ll offer the one matching.
7 What’s the pot life?
　 Pre-filled resin is one year; Pure resin is 2-3 years.
8 What's the packing?
　 Pre-filled resin is in 25kg drums; Pure resin is in 225kg drums; We also have 5kg drums, IBC tanks and etc.
9 We’re just starting producing. Can you help us on the process?
　 No problem, we’ll offer guidance and support. We have thousands of customer manufacturers in China and overseas. So we have good experiences.

Insulating Corrosion Resistant Epoxy , Electrical Quick Dry ResinInsulating Corrosion Resistant Epoxy , Electrical Quick Dry ResinInsulating Corrosion Resistant Epoxy , Electrical Quick Dry ResinInsulating Corrosion Resistant Epoxy , Electrical Quick Dry Resin
